Aluminum Modified Bow Truss Pedestrian Bridge – 108’ x 8’ – Westlake, OH

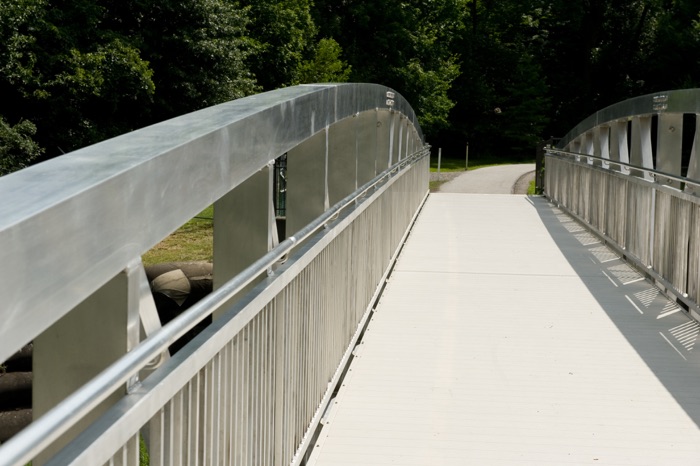

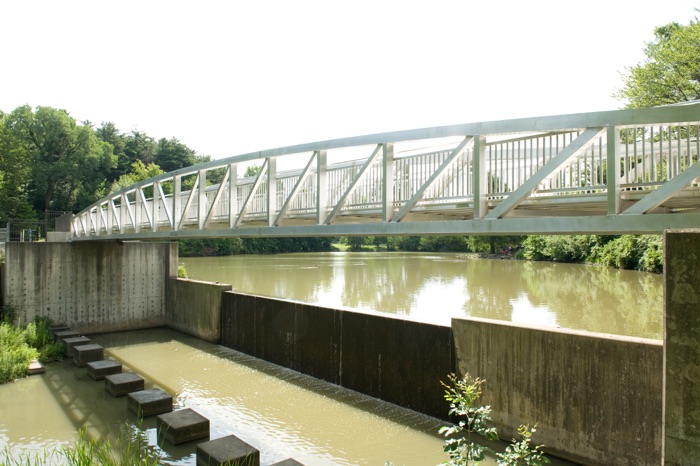

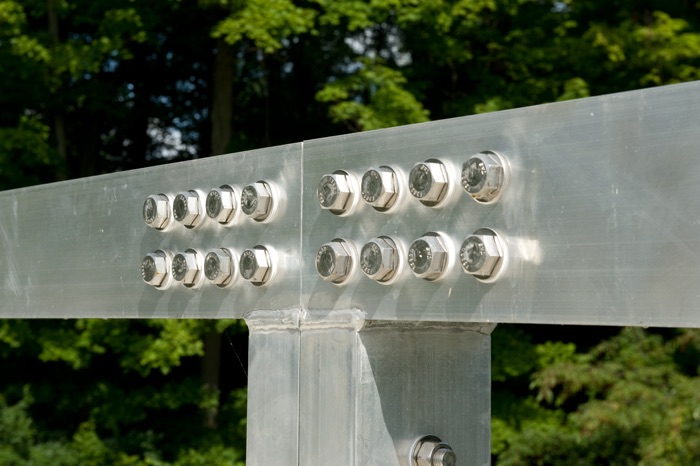

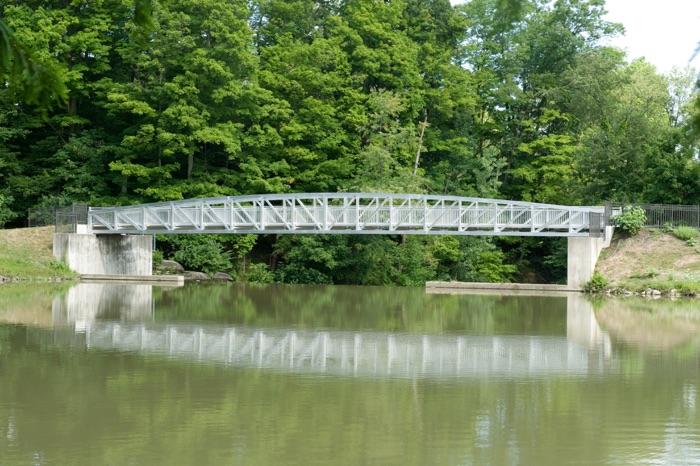

This aluminum Excel Bridge is 108’ long x 8’ wide clear span Modified Bow Truss. It is engineered according to AASHTO LRFD guide specification for design of pedestrian bridges. The design allows for 90 psf Uniform Live Load. The bridge is equipped with a non-slip aluminum bridge deck and has a fully assembled (deck-included) lifting weight of 21,500 lb. The bridge was shipped in 2 pieces, on over-the-road trucks, and upon arrival, was bolted together during a multi-stage installation. The bridge fit nicely onto the foundations and provides much needed pedestrian trail access across a portion of a small reservoir thru the very beautiful Clague Park in Westlake, OH.
